working temperature – straight modules
from 2°C to 4°C; corner NZ45 from 2°C
to 4°C; corner NZ90 from 4°C to 8°C;
• refrigerant: R290
• electrical defrosting
• automatic evaporation of condensate
• electronic controller with
temperature indicator
• exposition: 3 suspended glass
shelves + bottom made of powder
coated, zinc-coated metal plate
• shelves support and bottom
shelf in grey color RAL 7004
• back doors, sliding, double glazed (in
corner and 0600 modules hinged door)
• lighting – top and each shelf –
energy-saving, LEDit, WW-2
• sidewalls integrated with thermopane
glass, with silk-screen painting

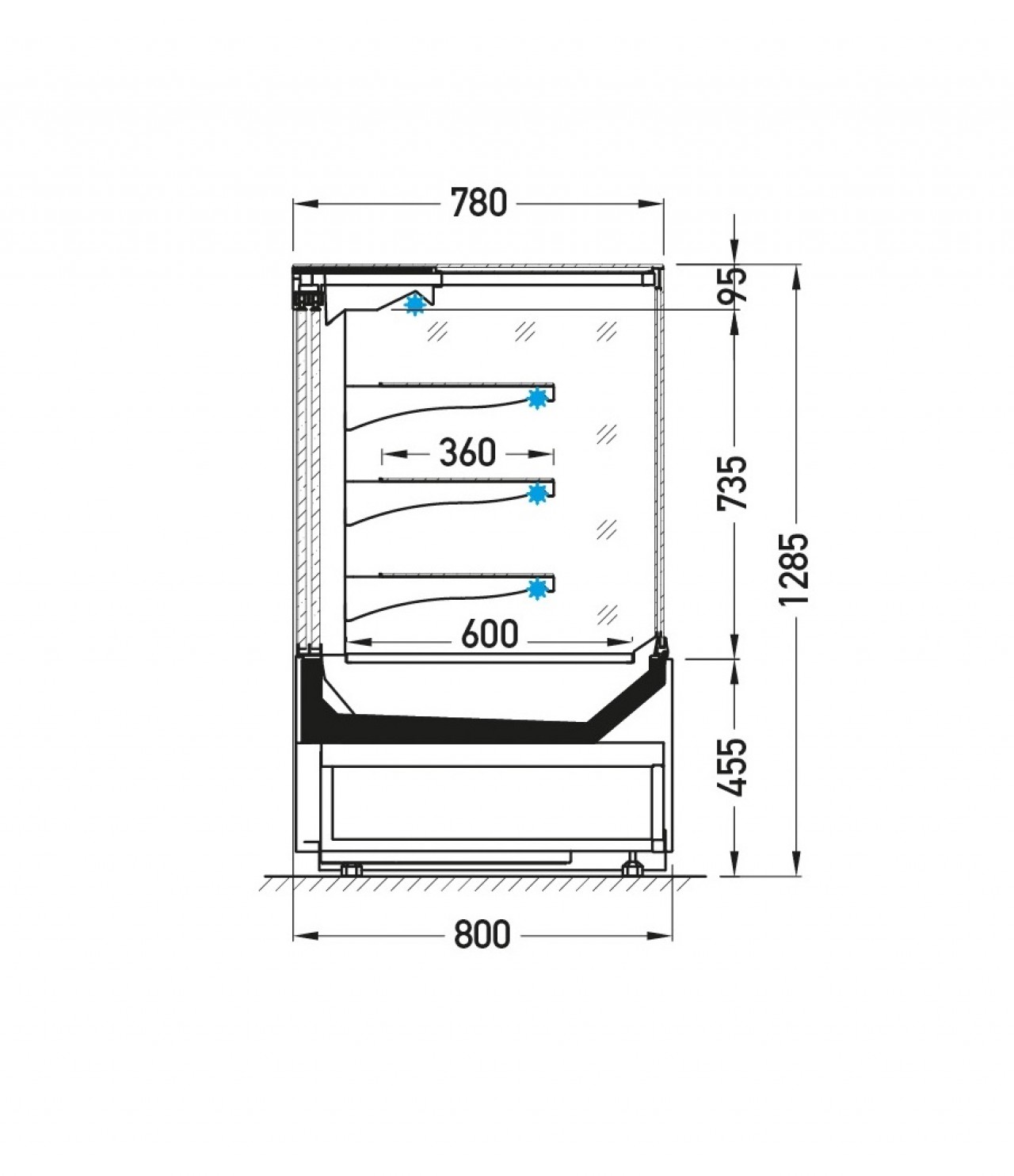

Modules		0600	0900	1400	NZ45	NZ90
Width*	[mm]	600	900	1400	980	1960
Depth*	[mm]	800	800	800	800	800
Height (±10 mm)*	[mm]	1285	1285	1285	1285	1285
Total Display Area (TDA)*	[m2]	0,98	1,48	2,36	1,27	1,68
Net capacity*	[dm3]	128	222	353	147	301
R290-GDT
